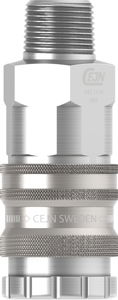

CEJN® Series 442 Safety Lock Couplings

  • Series 442 couplings withstand extremely rough handling in extra tough applications. The series features a zinc-plated steel/brass construction with a locking sleeve made of hardened zinc-plated steel. The series offers a wide range of connections, as well as anti-hose whip nipples. The automatic safetylocking feature prevents unintentional disconnection.
Technical Data Summary
Specification Details
Nominal Flow Diameter 10.4mm
Coupling Material Zinc Plated Steel/ Brass
Nipple Material Hardened Zinc Plated Steel
Maximum Working Pressure
  35 bar
Maximum Burst Pressure
  140 bar
Standard Flow Rate
  3950 l/min (139.4 CFM)
Temperature Range
  -30°c to + 100°c (-22°F to +212°F)


  • Flow capacity is measured at 6 bar (87 PSI) inlet pressure, and pressure drop at 0.5 bar (7 PSI).

    • coming_soon
    CEJN® Series 442 Male Coupling BSPT
    From £65.64 ex VAT
    coming_soon
    CEJN® Series 442 Male Coupling NPT
    From £65.76 ex VAT
    CEJN® Series 442 Female Coupling
    CEJN® Series 442 Female Coupling
    From £65.64 ex VAT
    CEJN® Series 442 Female Coupling NPT
    CEJN® Series 442 Female Coupling NPT
    From £65.76 ex VAT
    CEJN® Series 442 Hose Tail Coupling
    CEJN® Series 442 Hose Tail Coupling
    From £65.64 ex VAT
    CEJN® Series 442 Male Adaptor
    CEJN® Series 442 Male Adaptor
    From £9.74 ex VAT
    CEJN® Series 442 Female Adaptor BSPP
    CEJN® Series 442 Female Adaptor BSPP
    £14.05 ex VAT
    CEJN® Series 442 Hose Tail Adaptor
    CEJN® Series 442 Hose Tail Adaptor
    From £9.74 ex VAT
    CEJN® Series 442 Hose Tail Safety Adaptor
    CEJN® Series 442 Hose Tail Safety Adaptor
    From £36.84 ex VAT
    coming_soon
    CEJN® Series 442 Female Adaptor NPT
    From £14.12 ex VAT
